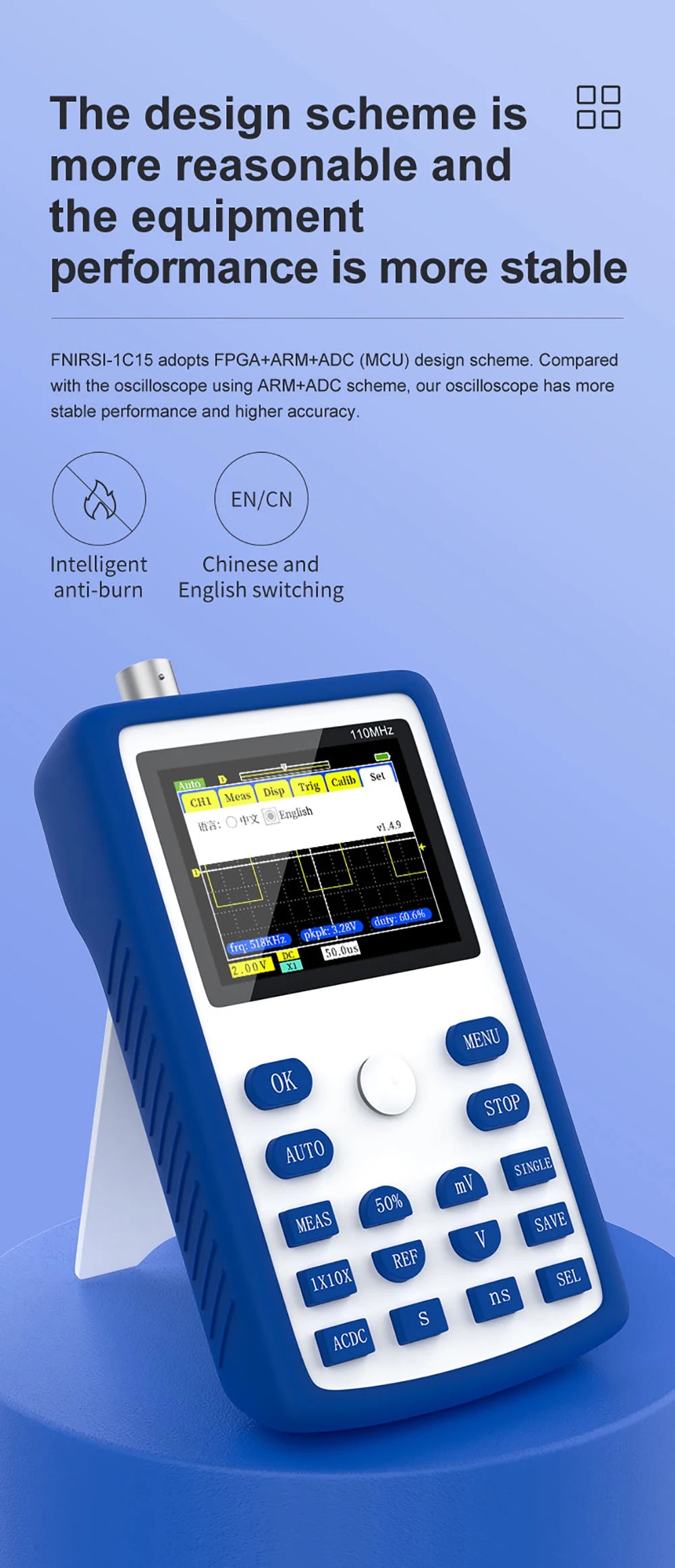

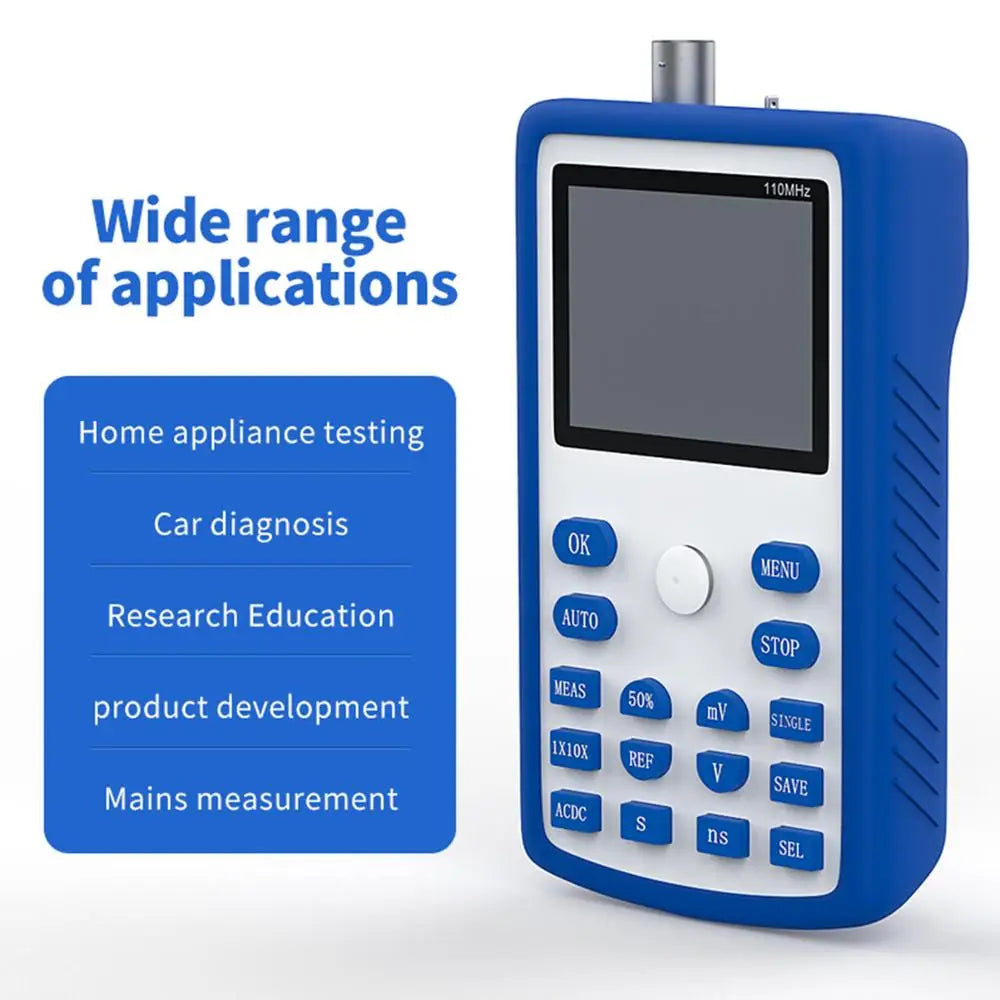

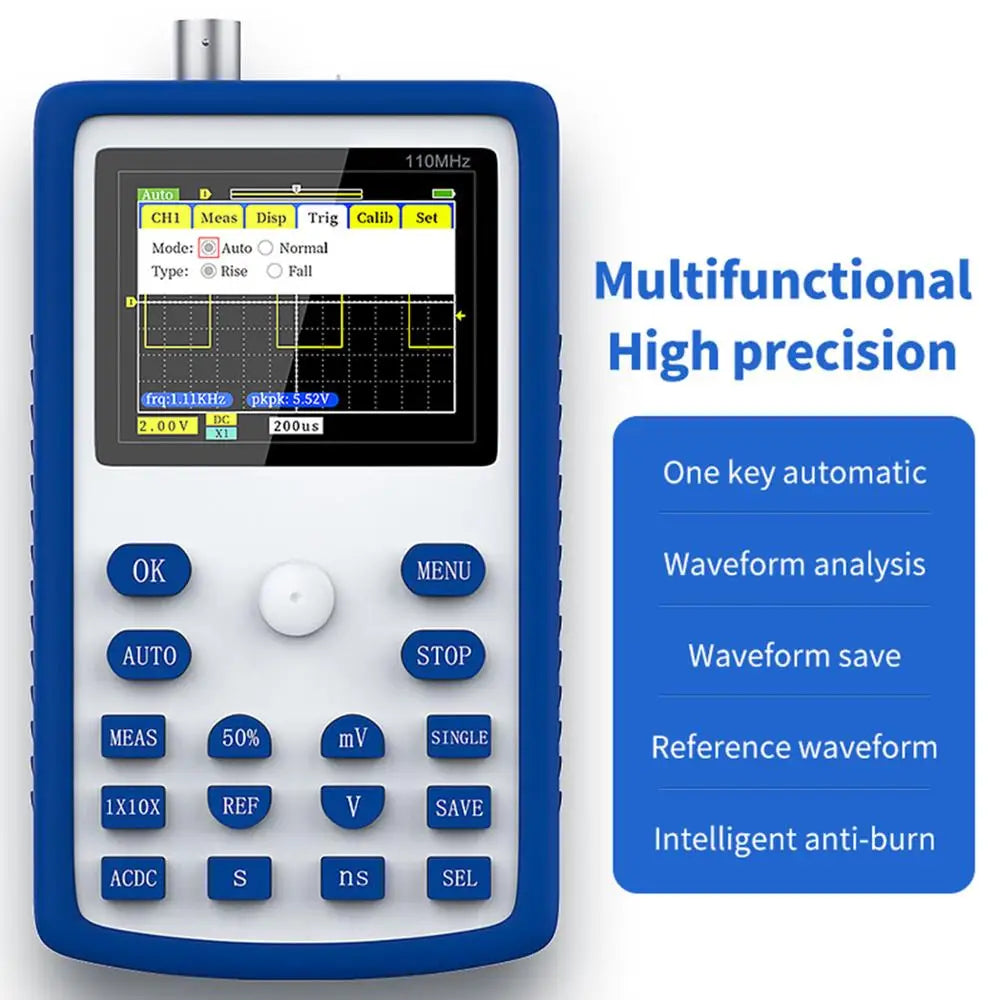

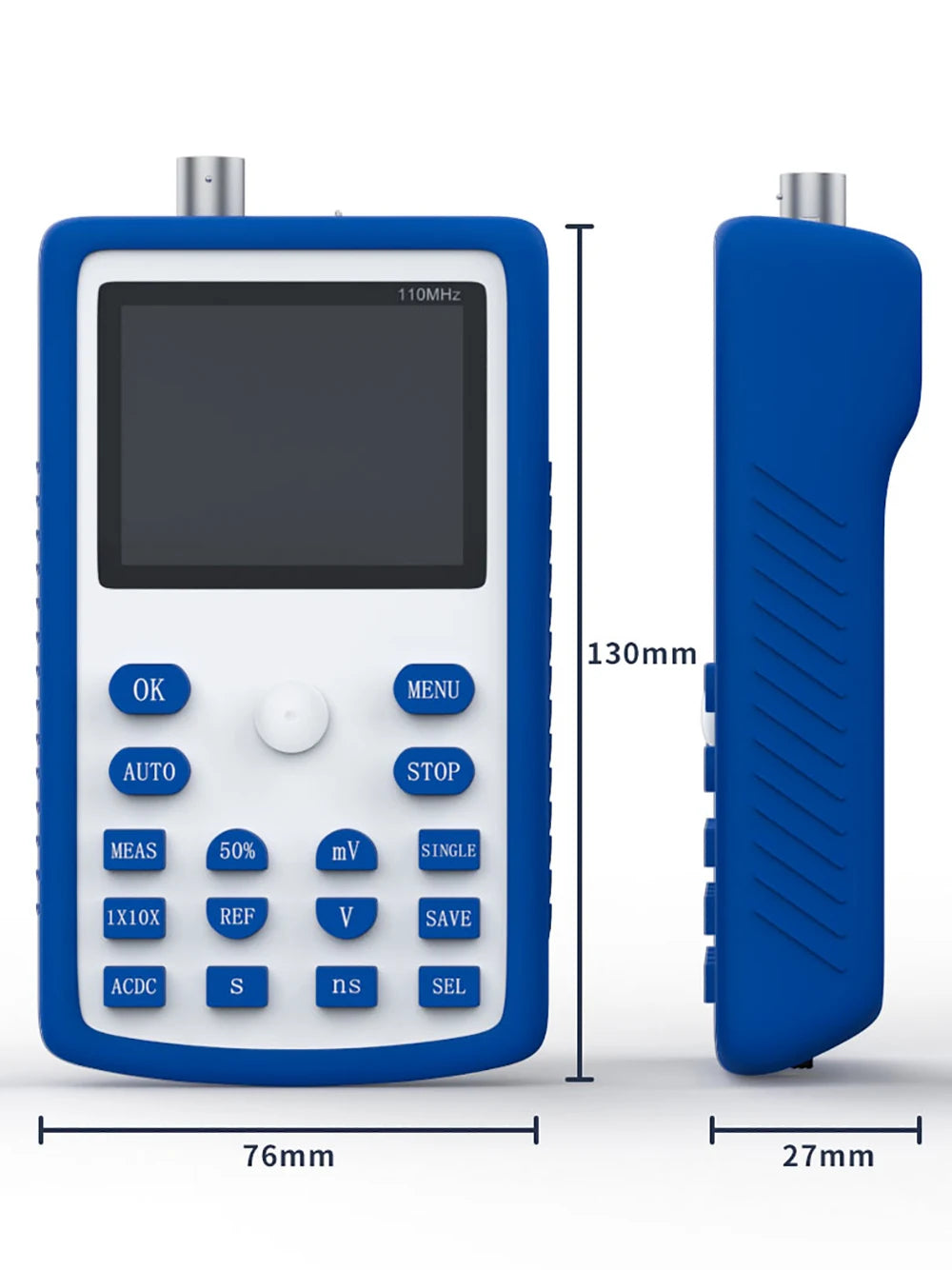

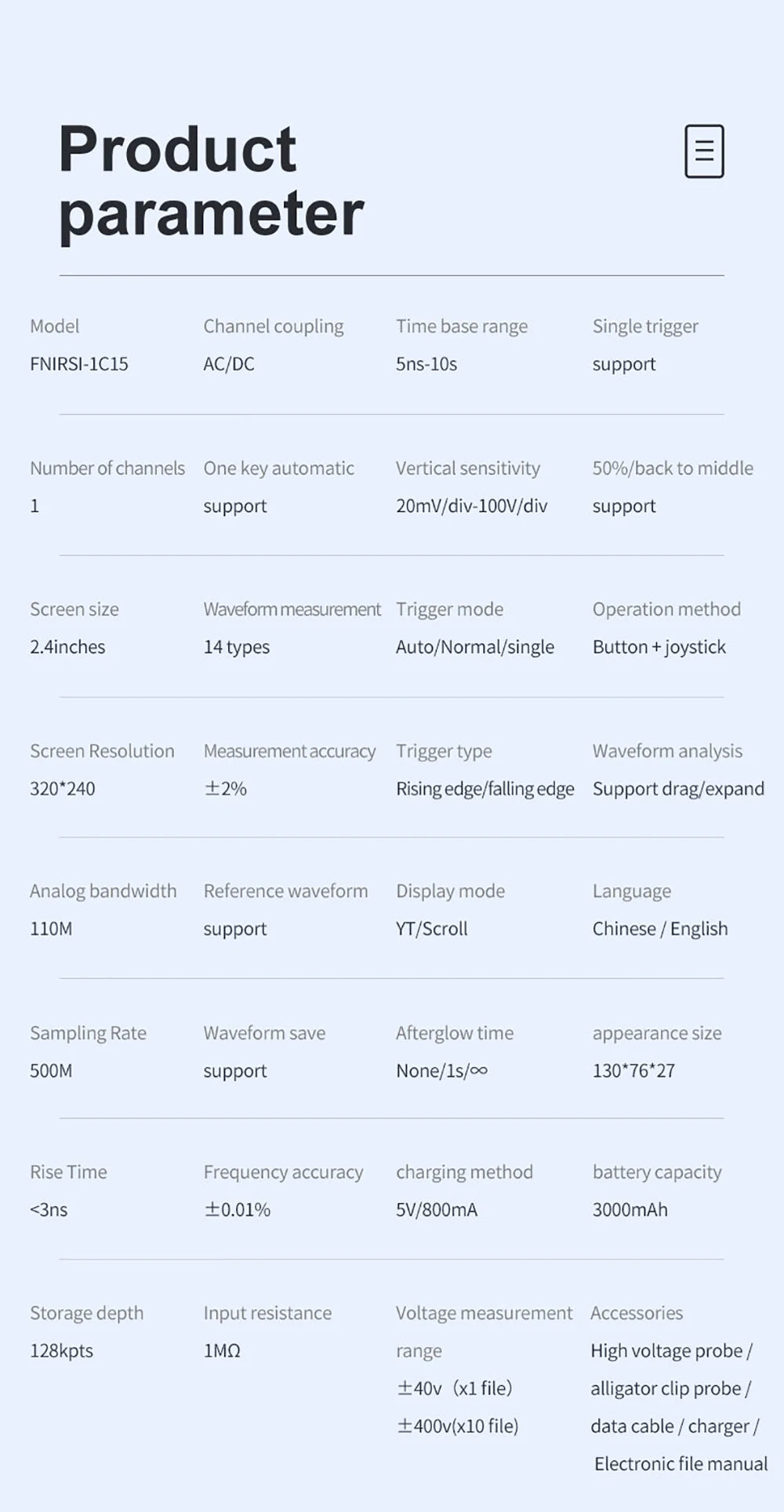

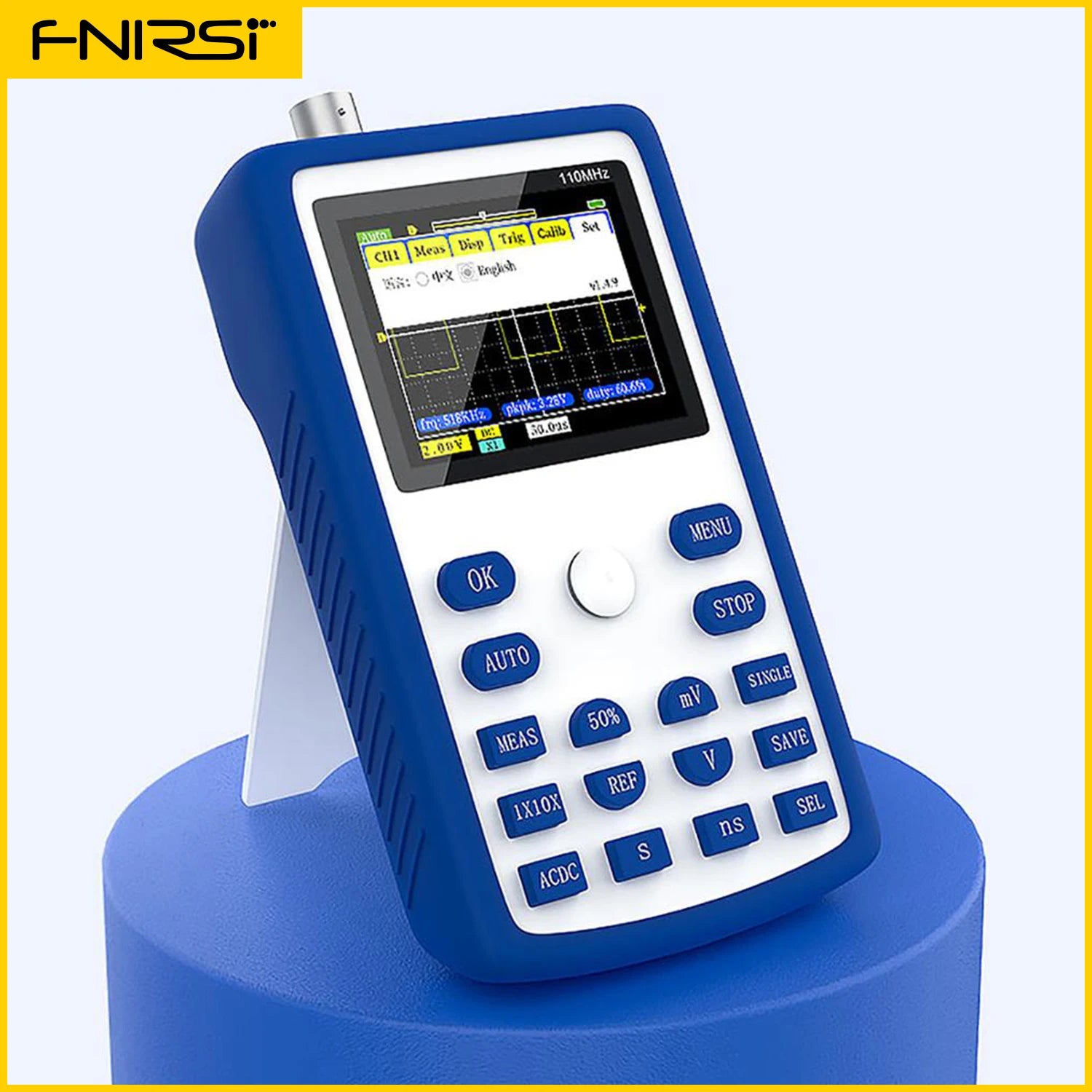

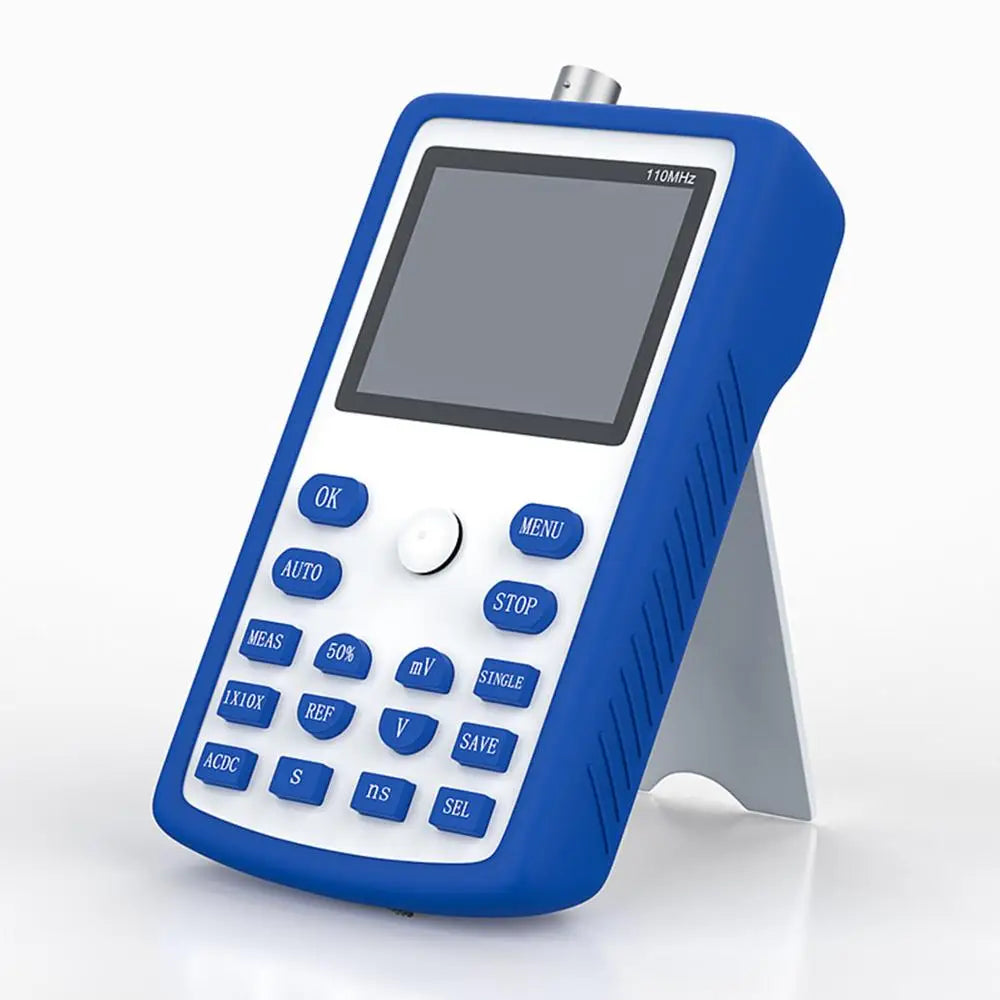

Model : FNIRSI-1C15

Number of channels : 1

Screen size : 2.4 inches

Screen Resolution : 320*240

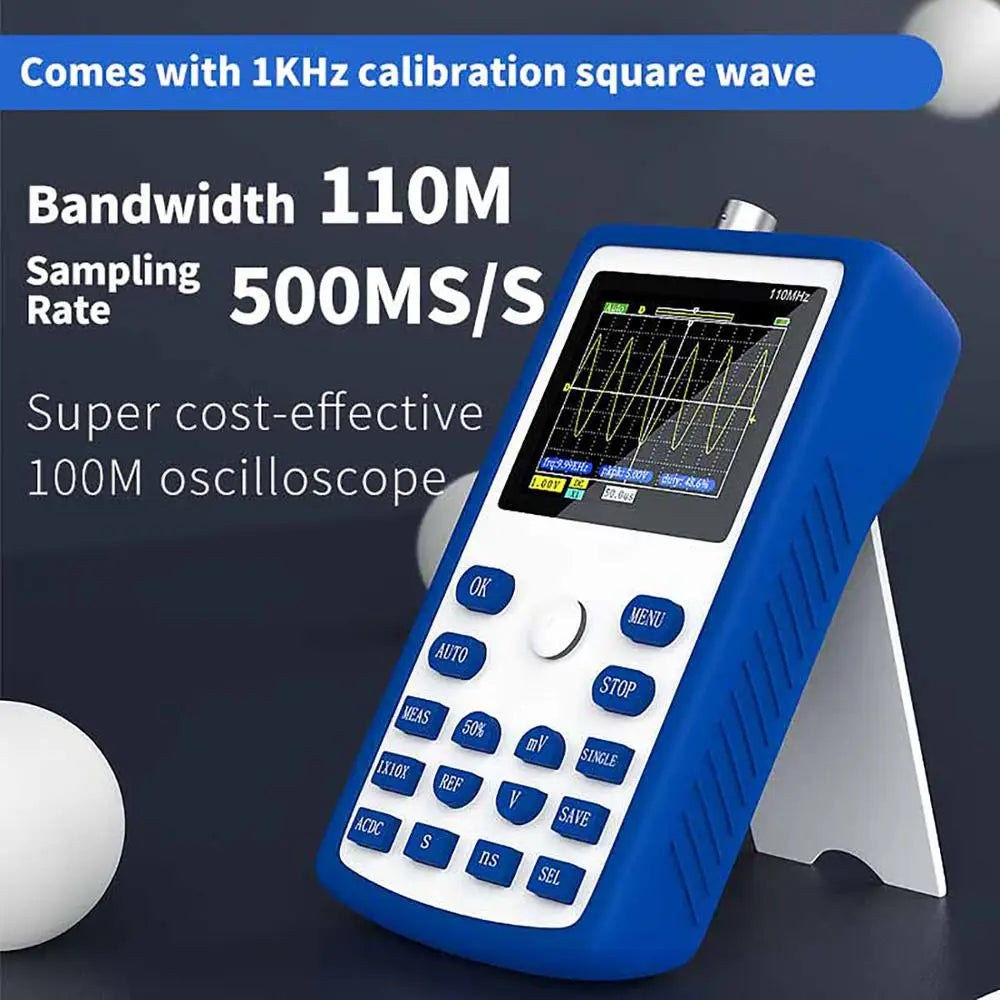

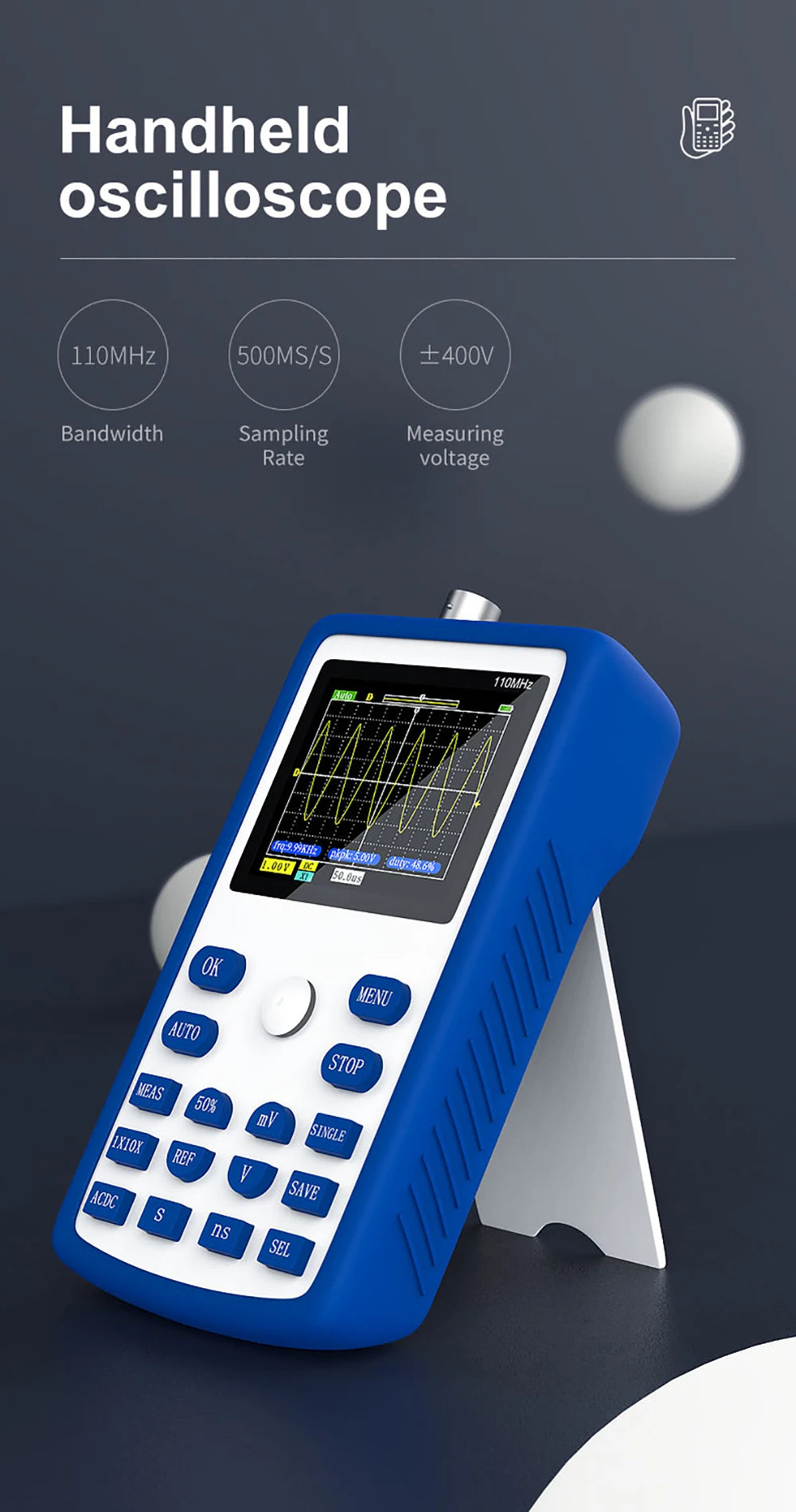

Analog bandwidth : 110M

Sampling Rate : 500M

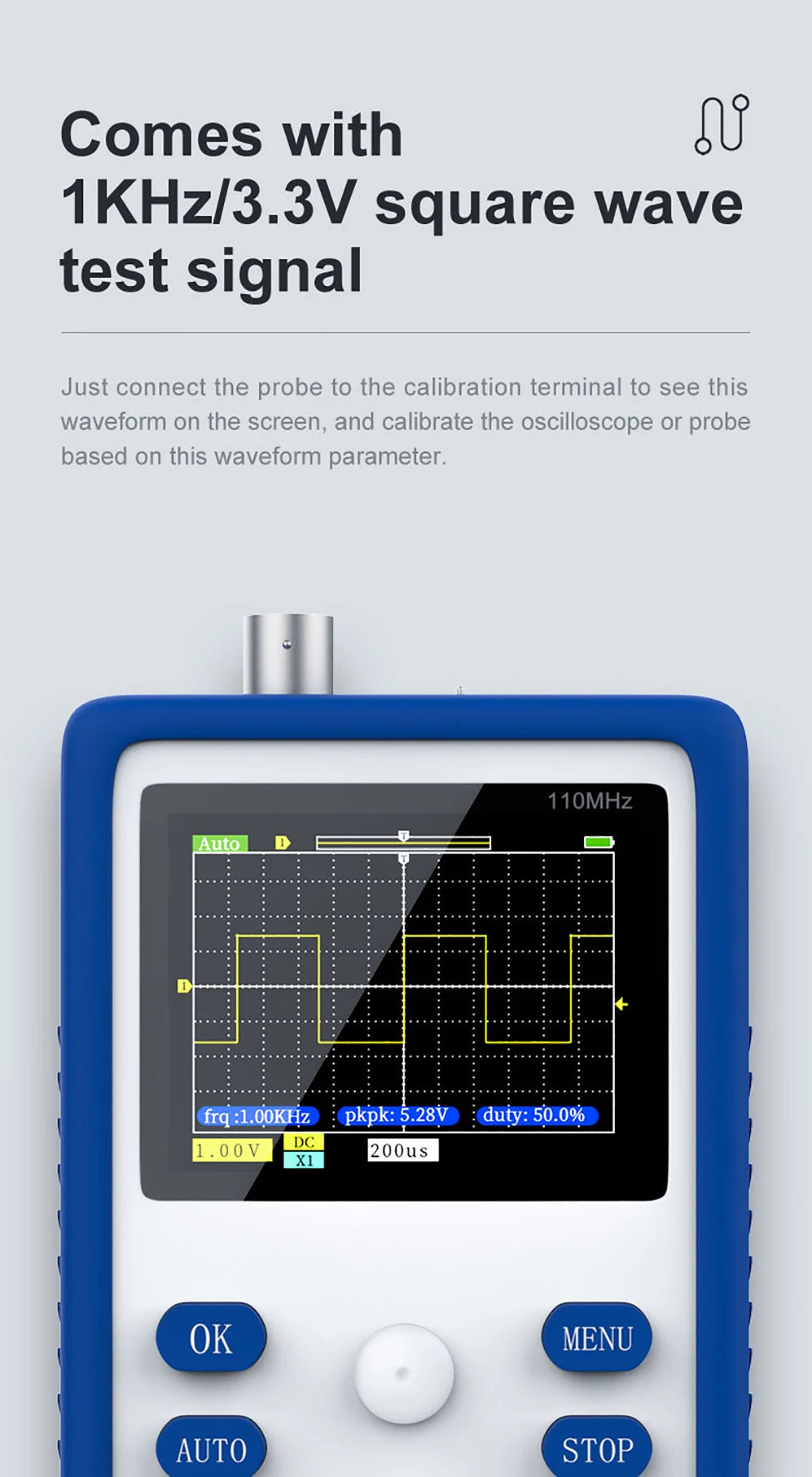

1k Hz self-checking square wave:Stand by

Rise Time : <3ns

Storage depth : 12 Kpts

Time base range : 5ns-10s

Vertical sensitivity : 20mv/div-100v/div

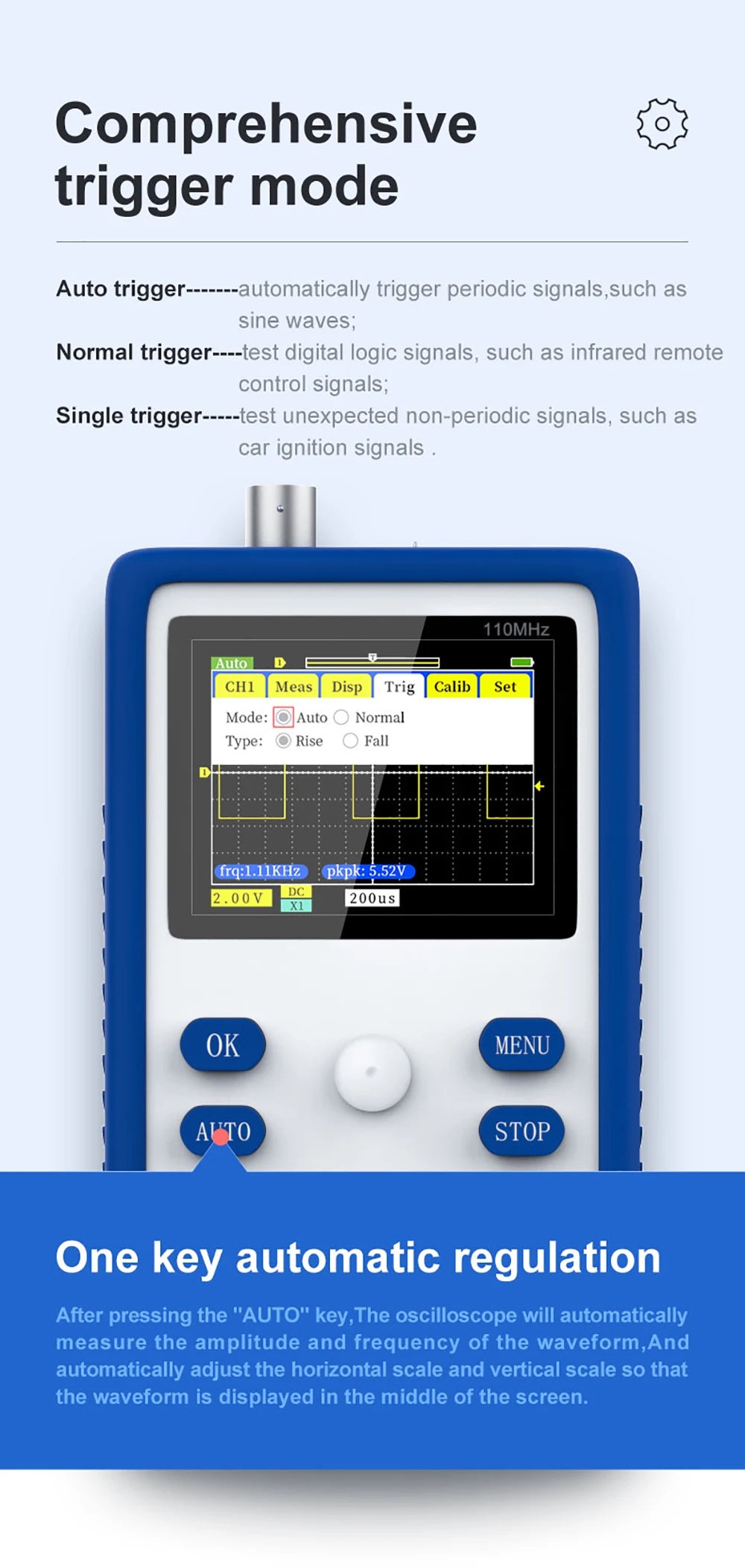

Trigger mode : Auto/Normal

Trigger type : Rising/Falling

Display mode : YT/scroll

Afterglow time : None/1s/∞

Charging method : 5V/800mA

Voltage measurement range : ± 40v (x1 file);± 400v (x10 file)

Channel coupling : AC-DC

One-button automatic : Stand by

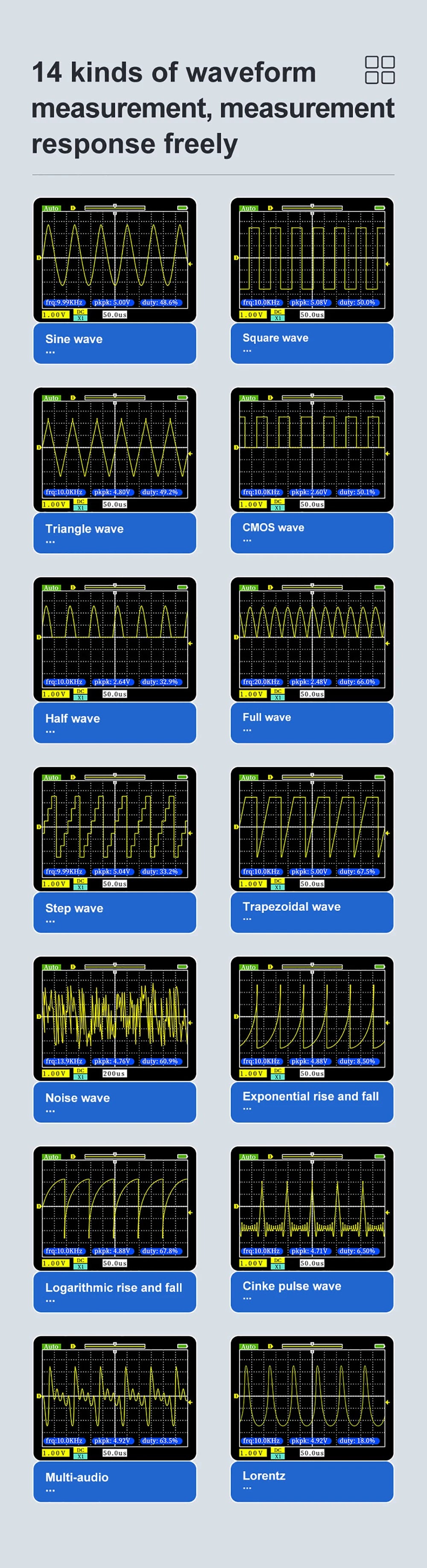

Waveform measurement : 14 types

Measurement accuracy : ±2%

Reference waveform : Stand by

Waveform save : Stand by

Frequency accuracy : ±0.01%

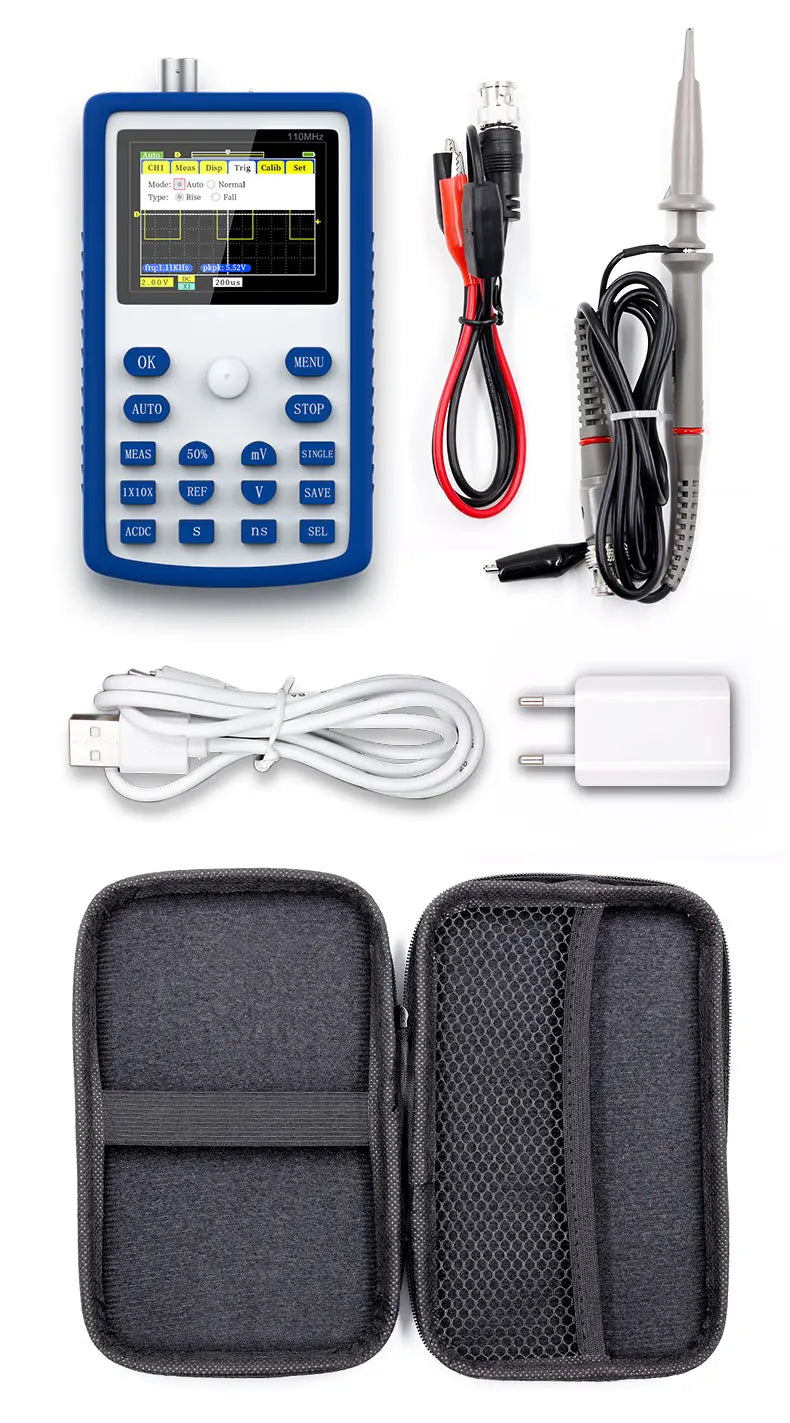

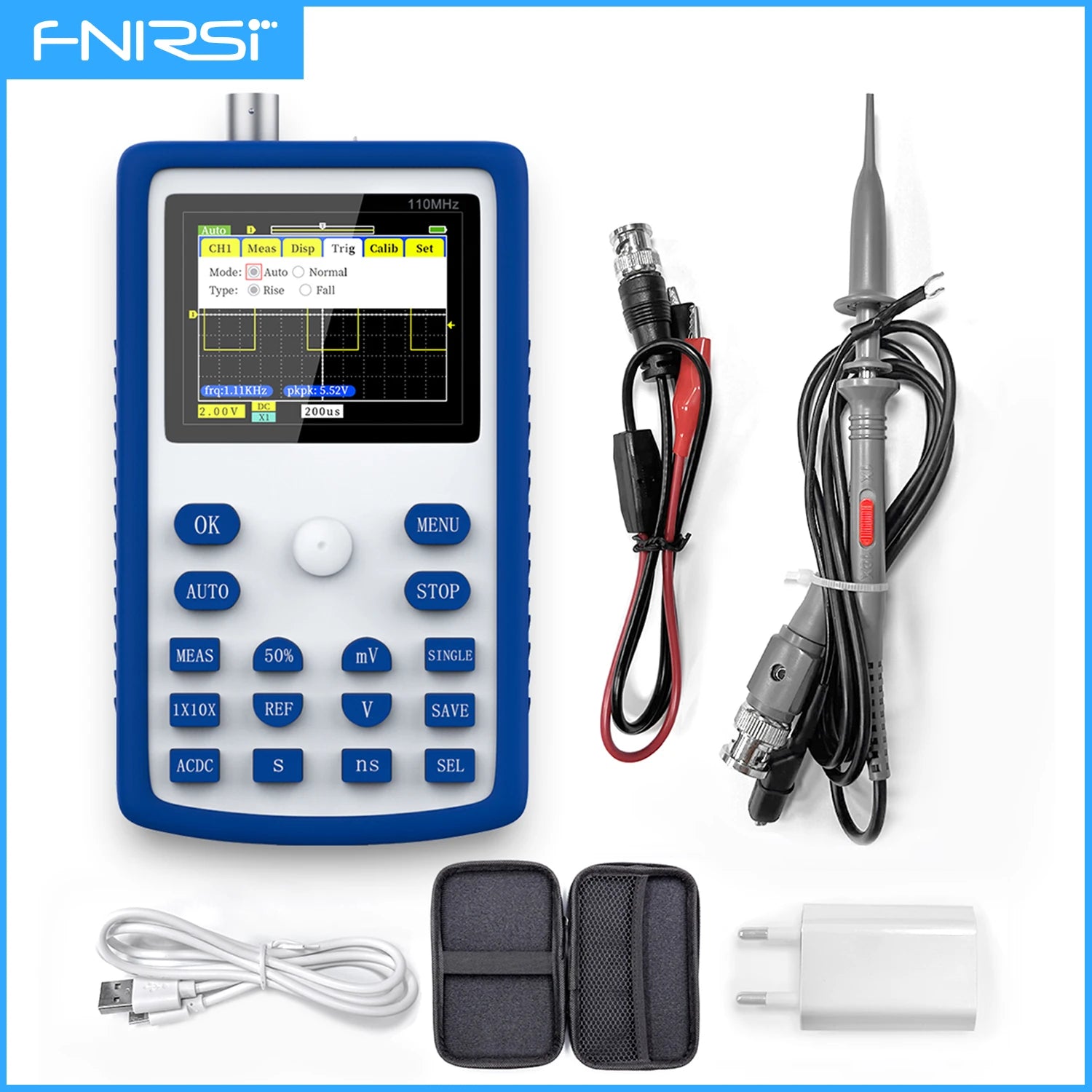

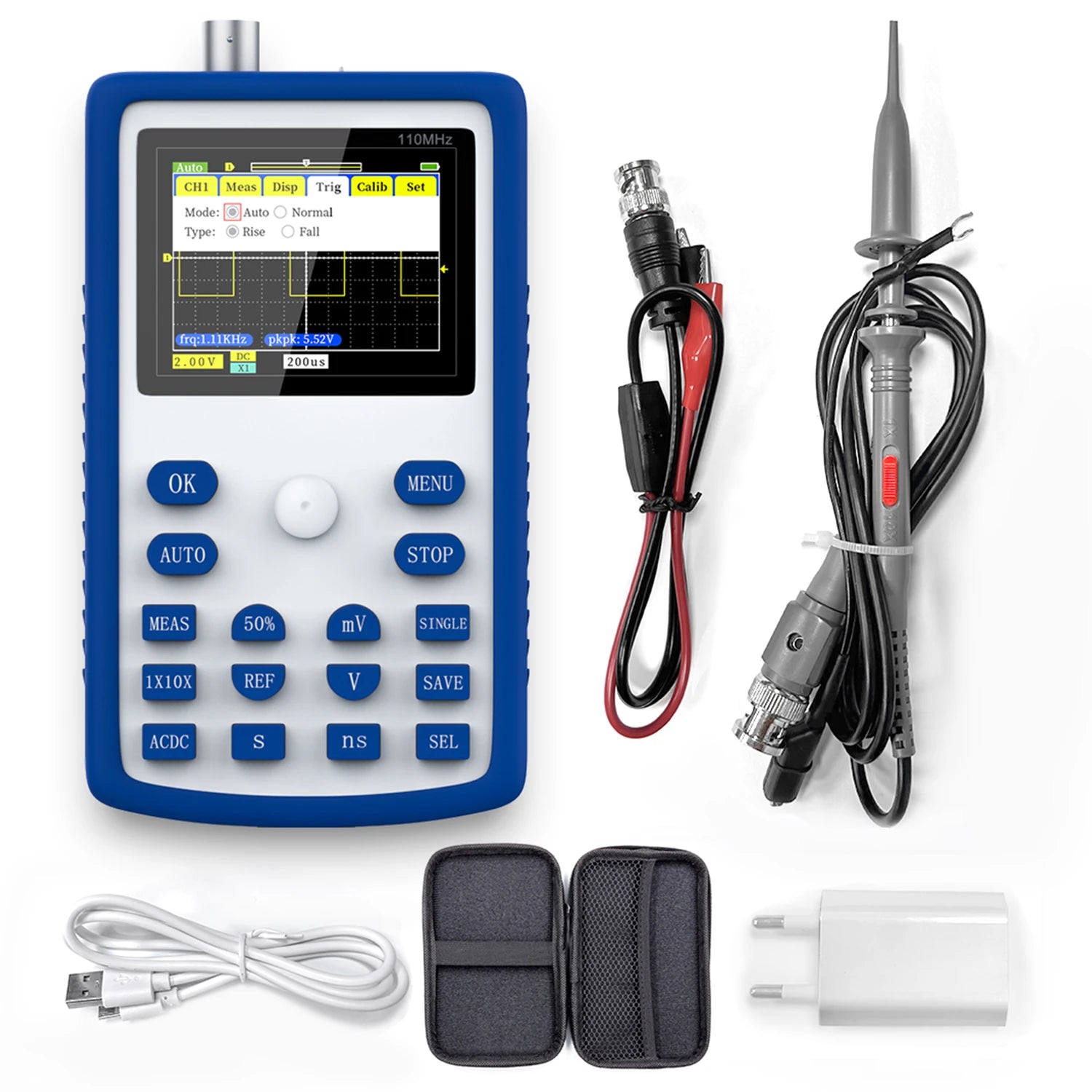

1 * FNIRSI 1C15

1 * P6100 High Voltage Probe

1 * Allgator Clip Probe

1 * Micro USB charging cable

1 * English User Manual

1 * Cloth bag
